| The Traditional random packing in RTO has the following advantages: | ||||||||||
| 1. It has long service life and low price. | ||||||||||
| 2. Compared with raschig ring, it has the advantages of large flux, pressure drop and high efficiency. | ||||||||||
| 3. It has excellent aldehyde and heat resistance. | ||||||||||
| 4. It can be installed between a perforated plate and a regular honeycomb ceramic bed to redistribute air. | ||||||||||
| 5.It can be installed on the top of the regular honeycomb ceramic bed, which can reduce the top of the regular honeycomb ceramic breakage and blockage. | ||||||||||
Physical specification
| Index | Unit | Value |
| Specific Gravity | g/cm3 | 2.25-2.35 |
| Heat Capacity | cal/g-°C(20-500℃) | 0.22 |
| Water Adsorption | % | ≤0.5 |
| Firing Temperature | ℃ | 1250-1300 |
| Softening Point | ℃ | 1300 |
Geometrical features
| Type of Packing | Nominal Size | Approx. Weight(kg/m3) | Specific Surface Area(m2/m3) | Void Fraction(%) | Packing Factor(1/m) |

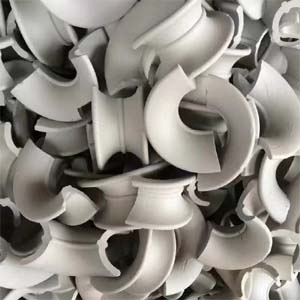

| Saddles | ½" | 741 | 623 | 71.7 | 656 |
| ¾" | 720 | 335 | 73 | 427 | |
| 1" | 700 | 250 | 74 | 617 | |
| 1.5" | 635 | 164 | 75 | 389 | |
| 2" | 600 | 142 | 76 | 323 | |
| 3" | 550 | 92 | 78 | 194 |
Chemical composition
| Catalog | Unit | by weight |
| SiO2 | % | 65.0-75.0 |
| Al2O3 | % | 18.0-23.0 |
| Fe2O3 | % | ≤1.5 |
