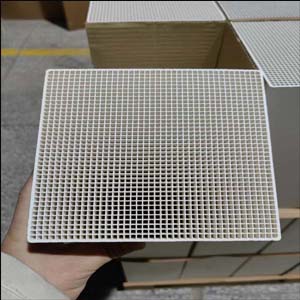

Honeycomb Ceramic Regenerator

Category :
Ceramic Filler
Support Hotline :
＋8613799972696

product introduction
properties

Product Details

The honeycomb ceramics has the following advantages:

1 .It has regular appearance, and the horizontal discharge of the heat storage body is neat, so the overall look is beautiful.

2. It has smooth hole wall and low back pressure.

3. It has large specific surface area and high heat transfer efficiency. (The smaller the aperture, the thinner the wall thickness, and the larger the specific surface area)

4.It has good heat shock resistance, good thermal conductivity and high mechanical strength.

5. The Individual replacement and cleaning the whole structure is easy to take out and carry, easy to backfill after cleaning, so the resulting secondary loss is small. (Without special circumstances, it is not recommended to remove the thermal storage ceramic frequently for cleaning or washing, because this will increase the frequency of RTO downtime and reduce the service life of the ceramic. )

Product model:

Specification:13cells、 25 cells、40 cells、43 cells、50 cells、60 cells

Dimension: 150mm（L）*150mm（W）*300（H）mm、150mm（L）*150mm（W）*150mm（H）

It can be customized size and slotted as required.

Dimension

Outside dimension	150150300mm	150150300mm	150150300mm	150150300mm	150150300mm	150150300mm	150150300mm

Cells	13*13	25*25	32*32	40*40	43*43	50*50	60*60

Cell width	9.3mm	5.0mm	3.9mm	3.0mm	2.8mm	2.4mm	2.0mm

Inner walls	2.05mm	0.95mm	0.8mm	0.67mm	0.65mm	0.6mm	0.5mm

Outside walls	2.5mm	1.5mm	1.3mm	1.3mm	1.2mm	1.1mm	1.1mm

Spec. area	310 m2/m3	590m2/m3	736 m2/m3	906 m2/m3	963m2/m3	1104 m2/m3	1291 m2/m3

Void fraction	65%	70%	67%	66%	64%	62%	60%

Chemical composition

Material	SiO2	Al2O3	Fe2O3	K2O	Na2O	CaO	MgO
Mullite	25-35	60-70	<1	1-2			<1

Cordierite	30-40	40-50	<1	1-2			6-14

Physical specification

Item	Unit	Mullite	Cordierite

Specific heat capacity	J/Kg·k	≥950	≥900

Density	g/cm3	2.1-2.4	2.0-2.2

Thermal expansion coefficient	×10－6·℃－1	5.0-6.0	3.0-4.0
	20～1000℃
Coefficient of heat conductivity	w/m·k	≥1.5	≥1.2

Max service temperature	℃	1450	1300

Temperature change resistance	℃	350	400

Water absorption	%	13-18	13-18
